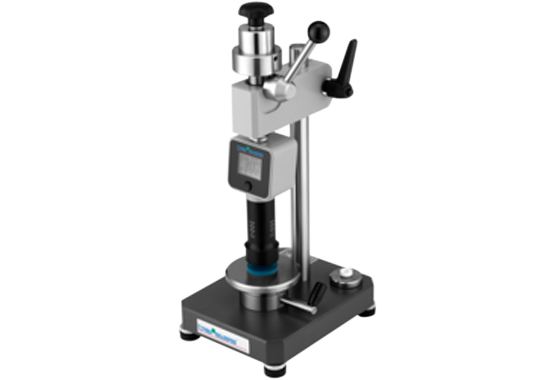

Fully automatic hardness tester digi test II

digi test II - a modularized tester for Shore, IRHD and VLRH

The digi test II consist of 4 major components: the test stand, the loading module (pick-up bracket), the electronic unit and the interchangeable measuing unit for methods of Shore, IRHD and VLRH. The highly intelligent digi test II is equiped with an electronic unit which serves as the main control of the entire system and the display of the user's information for measuring time and method, measurement and various selectable features.

Standards

DIN ISO7619、DIN ISO 48、ASTM D 2240、JISK 6253、GB/T6301

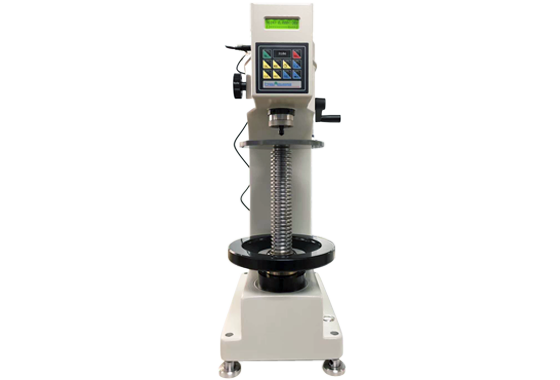

Testing device 3106

Ranges of application

Hardness tester for the determination of the ball indentation hardness modules selectable.

HPU-2 module ball indentation hardness acc. to DIN EN ISO 2039-1

HPE-3 module rockwell hardness on metal acc. to DIN EN ISO 6508-2 / ASTM E 18 / ASTM D 785

HPE-4 module Rockwell hardness on carbon materials acc. to DIN 51917 / DIN EN IEC 413DIN 51917 / DIN EN IEC 413

HPE-5 module hardness on building plasters acc. to DIN EN 13279

Hardness testers for SHORE HPE III

The new generation of HPE has many new features to offer. While the device is taking a hardness value from the specimen, a temperature sensor mounted on the bottom of the device is taking a temperature value. The device will have indication of both values as well as the values of the ambient temperature and humidity. Historical measurements can be displayed for the hardness values and date/time when each measurement was taken

Standards

DIN ISO 7619 / DIN EN ISO 868 / NF EN ISO 868 / ASTM D 2240 / JIS K 7312

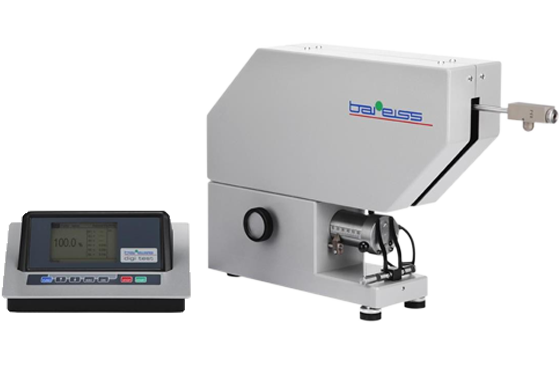

Automatic Rebound Elasticity Tester

Ranges of application

for elastomers, softelastic foams and similar materials evaluation of the median monitoring of the double oscillation according  to standard serial interface.

Electronic unit

Controls the automatic measuring process A graphic display is showing the results of the pre-conditioning, test results and the median value in % according to standards The test result is shown in % for single measurements

Standards

DIN 53512, ASTM D 1054, ISO 4662

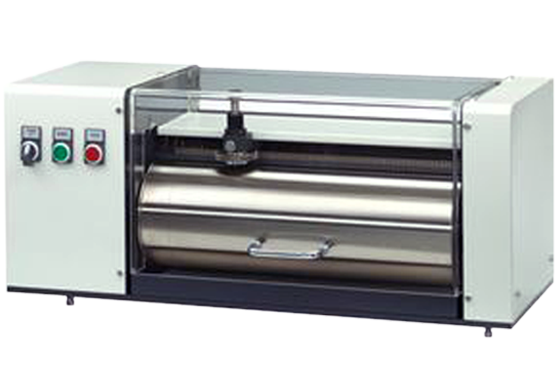

DIN Abrasion tester

Ranges of application

determination of the resistance of elastomers against abrasion for rubber products such as tire, conveyor belt, tube, shoes, fl oor coatings and etc.

Standards

DIN ISO 4649, NF ISO 4649, ASTM D 5963

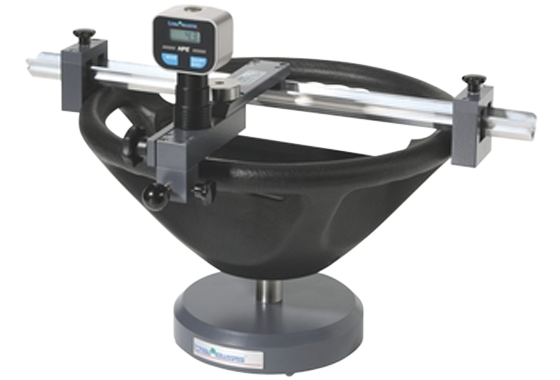

Hardness tester for steering wheels HPE II L

Hardness tester with data logger and quick-center device

By help of the quick-center device the test stamp HPE II L is placed in the centre  of the prescribed measuring area of the steering wheel. The load is applied by a  weight which is fixed at the measuring   frame.

After the expiration of measuring  time the measured value is read in the   displays of the HPE II L and data logger and stored.

Test Method

L, L/c

Standards

PV 3931

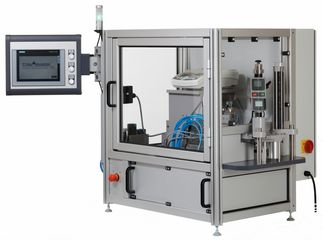

Automatic Hardness- and Density TestingHDA-150

Range of application

Hardness and density measurements on soft rubber, natural rubber products, etc.

Measuring principle

This automated system performs hardness tests on a multiple number of samples with a digital Shore A durometer. Followed by the hardness tests, the system continues with the density test and samples are disposed automatically.

Hardness acc. DIN ISO 7619, DIN EN ISO 868, ASTM D 2240

Density acc. ISO 2781, DIN EN ISO 1183-1, ASTM D1817

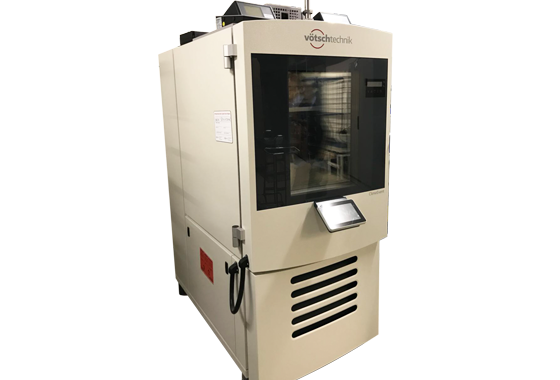

Hardness testing of elastomeric materials under temperature

Ranges of application

The revolutionary digiChamber consists of a digi test II hardness tester and a temperature chamber which allows tests to be carried out at above or below ambient temperature. With the function of temperature control, the specimen can be examined of its hardness changes in extreme temperature conditions. This kind of test is ideal for automobile and tire industries as most of the rubber parts are required to sustain critical temperature changes. The entire system can be controlled by a touch panel with coloured display providing easy-to-use feature.

digiChamber works according to the standard DIN 53505.
